Engine Type Air cooled, 4-stroke,SOHC, 2-valve Hybrid Equipped Displacement 125 cc Bore & Stroke 52.4x57.9mm Compression Ratio 10.2:1 Maximum Horse Power 6.0kW(8.2PS)/6500r/min Maximum Torque (With Assist Function Working) 10.3 N.m(1.1kgf.m)/5000 r/min Stop & Start System (SSS) Equipped Fuel System Fuel injection Starting System Type Electric starter and kick starter Transmission type V-Belt Automatic Smart Motor Generator(SMG) System Equipped Overall Length x Width x Height Disc/Drum:1,880 x 685 x 1,190 (Spec. in mm) Seat Height 785mm Wheelbase 1280mm Minimum Ground Clearance 145mm Weight (with Oil & a Full Fuel Tank) 98kg Fuel tank capacity 5.2 L Underseat Storage 21 L Battery Maintenance free - 12V,5.0 Ah Ignition system TCI (Transistor Controlled Ignition) Headlight (Class C) Disc: LED Drum: Halogen 12V,35/35W x 1 Brake light/Tail light 12V,21/5W x 1 Position Light LED Side Stand Engine Cut-Off Switch Equipped Meter Console Disc: Digital / Drum : Analogue Bluetooth (Yamaha Motorcycle Connect X) Disc: Equipped Drum: Available as accessory Suspension Type(Front/Rear) Telescopic Fork/Unit Swing Tyre Size (Front) 90/90-12 Tubeless Tyre Size (Rear) 110/90-10 Tubeless UBS Equipped Brake type (Front) Disc: 190mm Drum: 190mm Brake type(Rear) Drum

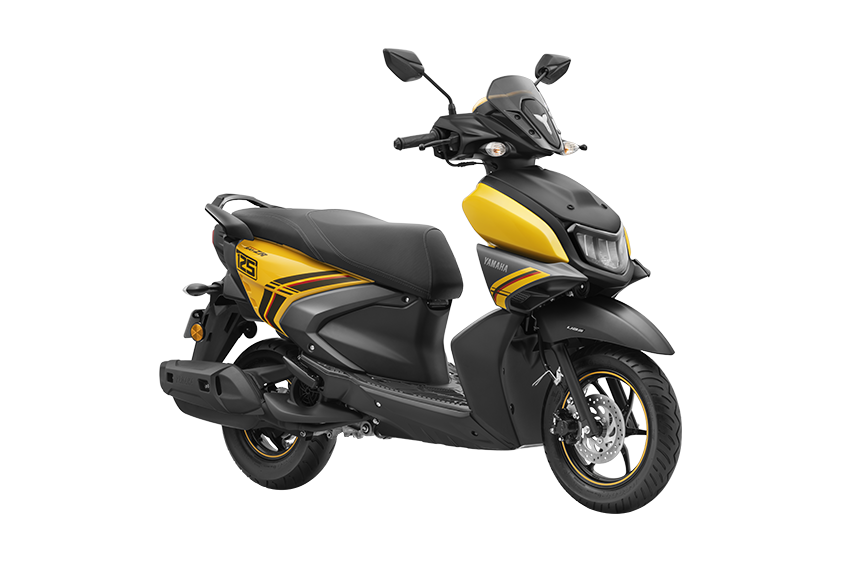

The all new RayZR 125 Fi Hybrid is powered by an air cooled, fuel injected (Fi), 125 cc blue core engine. The SMG charges the onboard battery. The SMG along with the engine produces 8.2 PS and up to 10.3 Nm (0.6 Nm higher than the previous RayZR 125FI) torque for quicker acceleration when starting from a stop.
ASCENT ACCELERATION
Drive force at the rear wheel at low speeds has been improved by 30%.
STANDING ACCELERATION
The boost in acceleration from 0 to 200 metres results in an advantage equivalent to more than seven bikes in length over the 113 cc model.
PASSING ACCELERATION
Power in the 30-60 km/h range, pivotal for overtakes, has been improved by 30%.
*Compared to the 113 cc models
The all new RayZR Fi Hybrid with BS-VI engine boasts an increase in mileage by 16% through the astute technology of Smart Motor Generator and Stop & Start system.
* Compared to our earlier 113 cc scooter
It automatically stops the engine when stationary and starts it with the twist of the throttle, saving upto 1.9cc of fuel every minute which is 4% more than before
